Oil-Based Epoxy Intermediate Paint

BNO-210AB
The product has high impact resistance, strong adhesion, excellent acid and alkali resistance, cleaning agent resistance, and excellent wear resistance. It has good construction performance and is not prone to bubbling or sagging. It should be used with a bottom and middle surface. It is suitable for coatings in storage tanks, containers, steel structures, steel pipes, offshore platforms, ships, port facilities, and harsh anti-corrosion environments.

Consult

Features Technical Indicators Overall Dimension

Product introduction: It is a transition coating between oily epoxy zinc-rich primer and oily polyurethane topcoat.
Product characteristics: It has good mechanical properties, the paint film is tough and impact-resistant, the coating is resistant to water, salt water, and medium corrosion, it has good anti-penetration.
Instructions for use:
Product preparation: It must be stirred thoroughly. If there is no two-component mixing equipment, the curing agent and paint must be mixed strictly in proportion and fully stirred until uniform. An appropriate amount of diluent can be added as needed.
Surface treatment: The surface of the material needs to be cleaned by degreasing, degreasing, sandblasting or grinding.
Coating method: air spraying

Spraying parameters	Spray gun caliber	Spraying pressure	Dilution ratio	Construction viscosity
Air spray	1.5		15-20%	30-40 (T3#/25℃)
	1.8		10-15%	25-35 (T3#/25℃)

Recommended film thickness: 50-60um The film thickness of the coating sprayed on a vertical surface at one time is related to the spraying method, spraying temperature, and the surface roughness, shape and other factors of the object.
Spraying environment temperature: 10-40℃, the surface temperature of the sprayed object must be more than 3℃ higher than the dew point. Air humidity in spraying environment: <80%

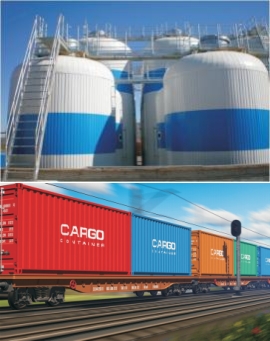

Application fields: Applicable to anti-corrosion coatings for containers, chemical equipment, storage tanks, locomotives or automobiles. As a "thickening barrier layer" for heavy anti-corrosion systems, it can fill the gaps in the primer, enhance chemical resistance, permeability resistance and mechanical strength, and extend the life of the overall coating.

Test items	Performance Indicators
Viscosity	≥60 seconds (T3#/25℃)
Adhesion	≤1 level
Hardness	≥1H
Luster	Can be customized according to customer needs
Solid	70-80%
Density	2.2-2.4g/ml
