Carbon Fiber Primer/Carbon Fiber Varnish/Water-Based Two-Component Paint

Carbon Fiber Primer/Carbon Fiber Varnish/Water-Based Two-Component Paint

TQ-XXA、XXB

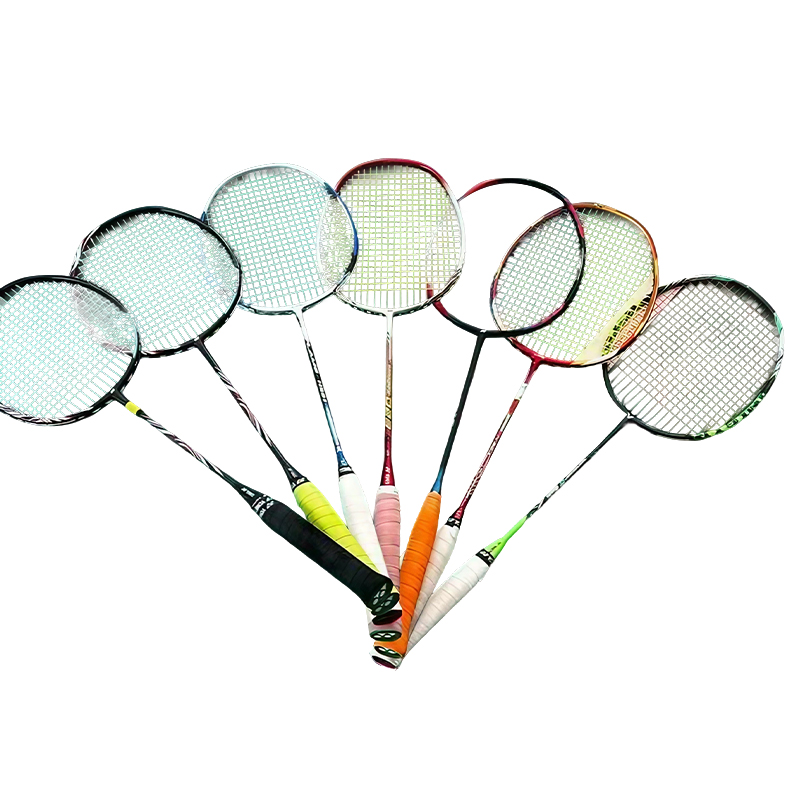

The product has fast drying film, low odor, high cost performance, good film fullness, good aging resistance, strong decorative effect, and should be used with a primer. Applicable to aerospace, sports equipment, automotive industry, etc.

Consult

Features Technical Indicators Overall Dimension

Product features: It is environmentally friendly, non-toxic and odorless, meeting modern environmental protection requirements. Strong permeability: It penetrates deep into the pores of carbon fiber, enhances adhesion, avoids structural damage caused by coating peeling, penetrates at the molecular level, and forms a "flesh-and-bone" protective layer with the carbon fiber. Elastic matching: It adapts to the high strength and high modulus characteristics of carbon fiber, and is vibration-resistant and does not crack. Lightweight formula: Low solid content, does not increase the weight of the vehicle body. Good polishing performance: It does not produce dust or stick to sandpaper.
Product characteristics: It is environmentally friendly, non-toxic and odorless, and meets modern environmental protection requirements. Its paint film hardness can reach 2H, and it has good water resistance, durability, stain resistance, anti-adhesion, wear resistance and other properties.
Instructions for use:
Product preparation: It must be stirred thoroughly. If there is no two-component mixing equipment, the curing agent and paint must be mixed strictly in proportion and stirred until uniform. Appropriate amount of diluent can be added as needed
Coating method: air spray

Spraying parameters	Spray gun caliber	Spraying pressure	Dilution ratio	Construction viscosity
Air spray	1.8		4:1:1	11-12s（T4#/25℃）

Spraying environment temperature: 5-40℃, the surface temperature of the sprayed object must be higher than the dew point by more than 3℃.
Spraying environment air humidity: <80%

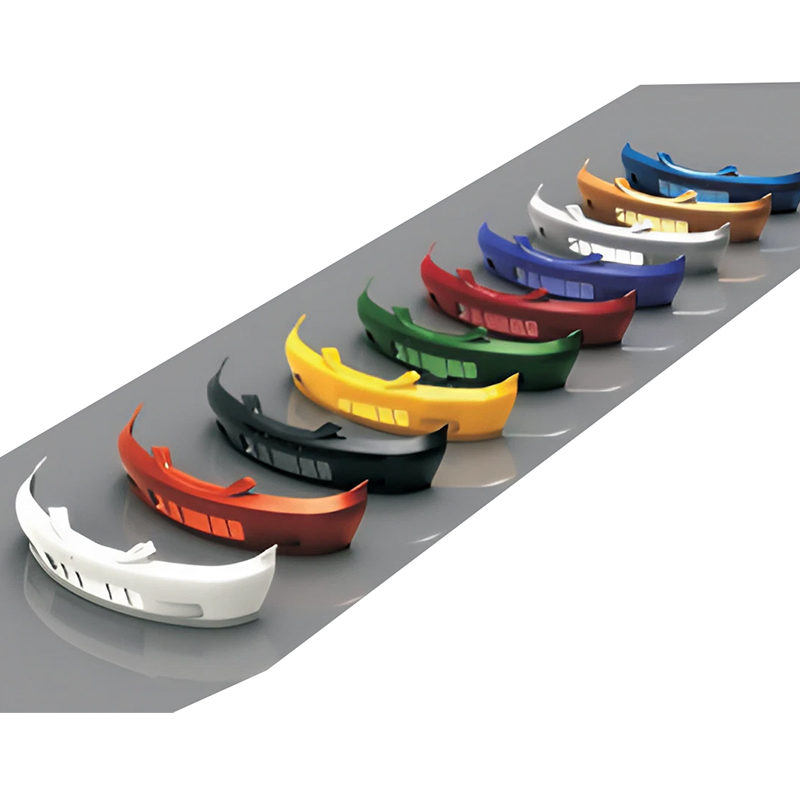

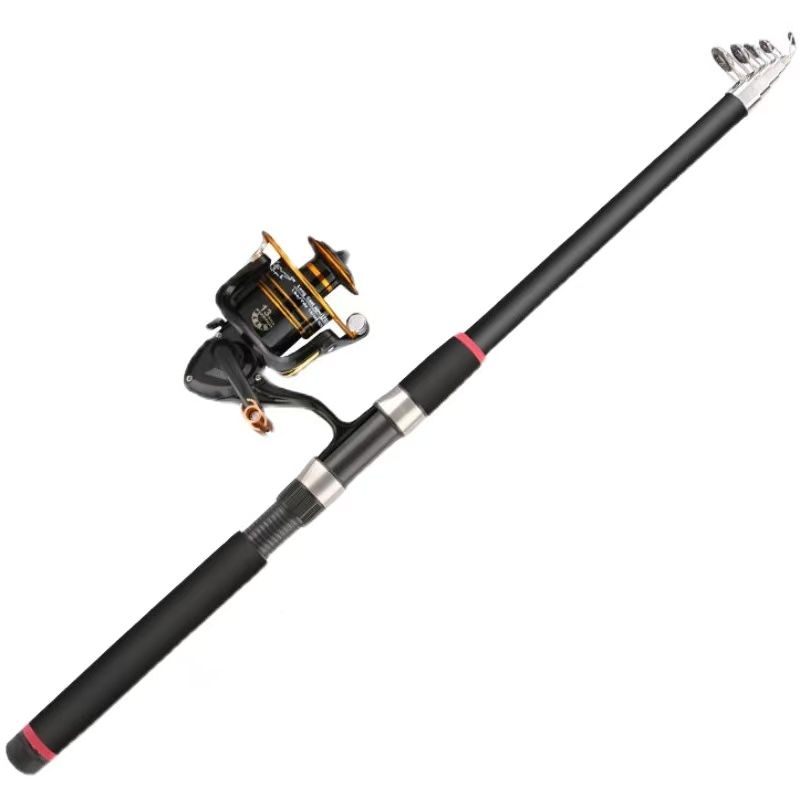

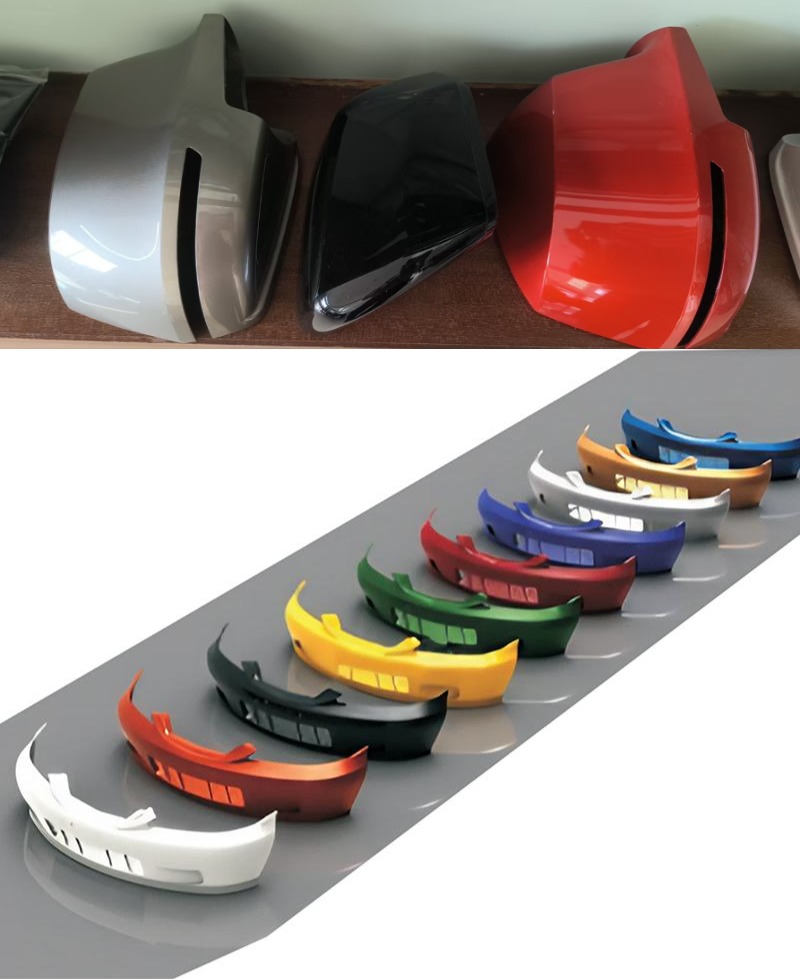

Application fields: Suitable for a variety of fields, such as furniture manufacturing, automotive parts, fishing rods, electronic product housings, building materials, etc. It can provide a smooth surface effect while having excellent adhesion and weather resistance.

Test items	Performance Indicators
Viscosity	18-20 seconds (T4#/25℃)/60-70KU (KU/25℃)
Adhesion	≤1 level
Hardness	≥HB
Luster	＞90°
Water resistance	120H no blistering, no peeling
Solid	35-40%
Impact resistance	≥80cm
Density	1.0-1.1g/ml
